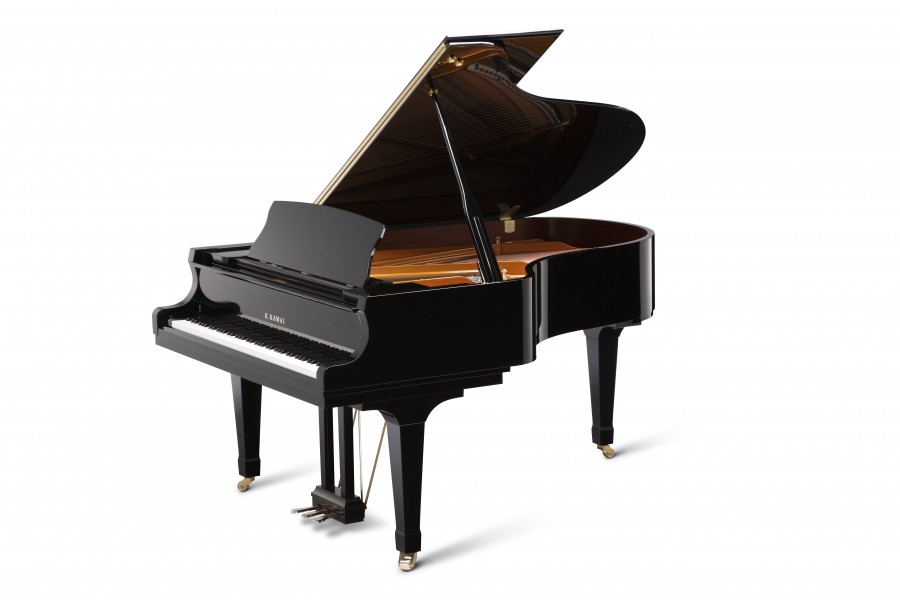

GX-5



The new standard of grand piano design is beyond imagination. Combining state-of-the-art technology with traditional craftsmanship. Applying knowledge and experience handed down from generation to generation. Defining the ‘made in Japan’ philosophy of piano building. Lightness of touch usually experienced by only the very finest concert pianists. Rich, vivid, expressive tone that inspires one’s creative passion. A new era of grand piano performance has arrived.

Joyous touch to awaken one’s imagination

The new GX Series grand pianos aim to reproduce the delicate control of a full concert grand piano, delivering a level of refinement that few pianists have the opportunity to experience.

In order to achieve this ambitious goal, the length of the keyboard has been extended significantly, increasing the fulcrum distance for each key. This extended key pivot length results in a more consistent touch weight when playing towards the back of the keyboard, affording the pianist greater expressive control, and allowing one’s imagination to soar freely.

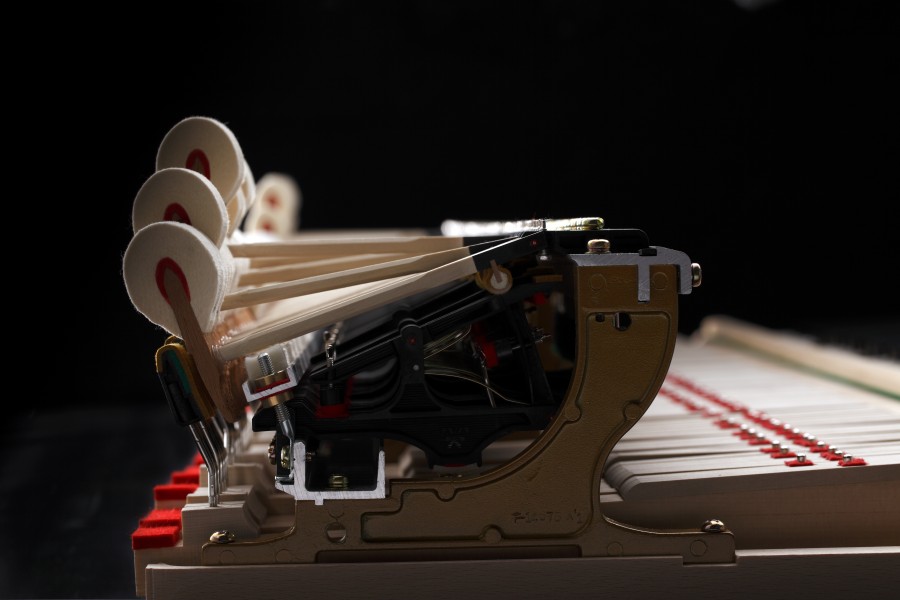

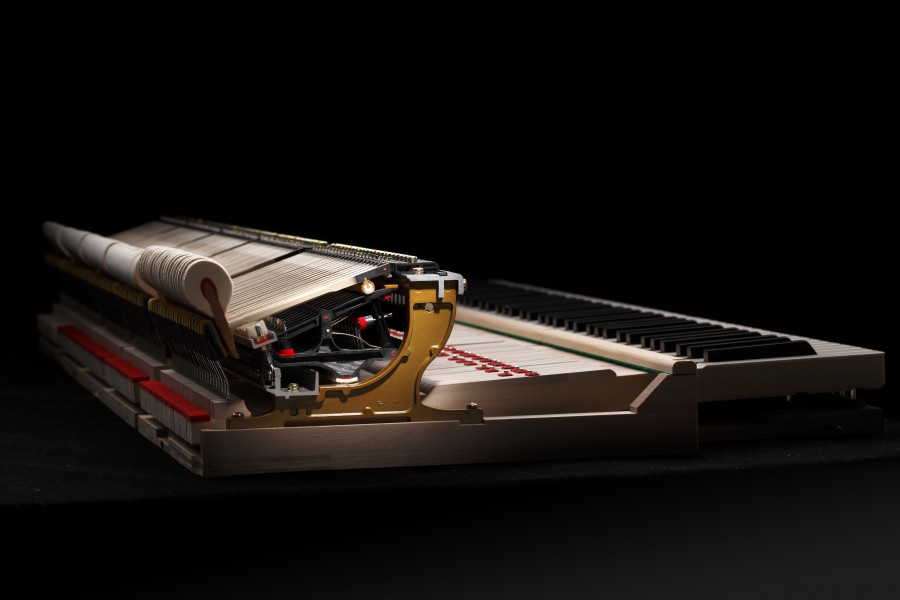

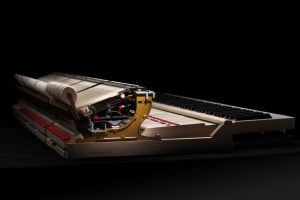

Millennium III Action
The revolutionary Millennium III Advanced Piano Action represents the third evolution of piano touch. Combining modern material science with innovative new design concepts, Kawai has developed an action with a touch and consistency that is unmatched. We cordially invite you to experience the preeminent piano action of the third millennium.

The Millennium III Action features components made of ABS-Carbon, a new composite material created by the infusion of carbon into our existing ABS Styran. ABS-Carbon is incredibly sturdy and rigid, which allowed Kawai to make the action parts lighter without sacrificing strength. The lighter design makes the Millennium III Action tremendously fast and effortless for the player. The repetition and response are superb.

Every exacting detail of the action was exhaustively analysed to meet the stringent demands of the skilled pianist. One prime example of this effort was the addition of microscopic surface texture on the jack at the point where it meets the hammer. The result of this subtle but important change is a dramatic increase in control during pianissimo playing.

Purity of tone that fills the room

In order to produce Kawai’s special tone, a broad range of woods are meticulously analysed for quality and character, before being selected as the finest materials for each specific purpose. The soundboard has arguably the most significant influence over a piano’s individual tonal elements. Therefore, woods that conform to the most rigorous gravity and propagation velocity standards are carefully selected by experienced craftsmen in order to achieve rich, deep bass tones, and bright, colourful, sustaining treble tones. In addition to the soundboard, bridges, and ribs, optimum materials for the inner-rim are also carefully considered, combining the unique properties of different hardwoods to create a layered hybrid construction. This produces a broad range of sound, allowing even greater expressive power.

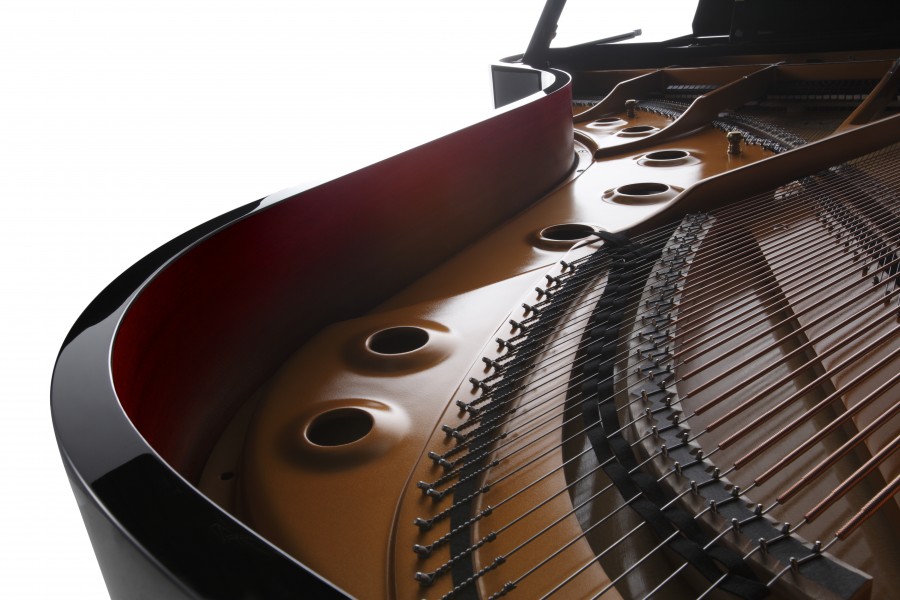

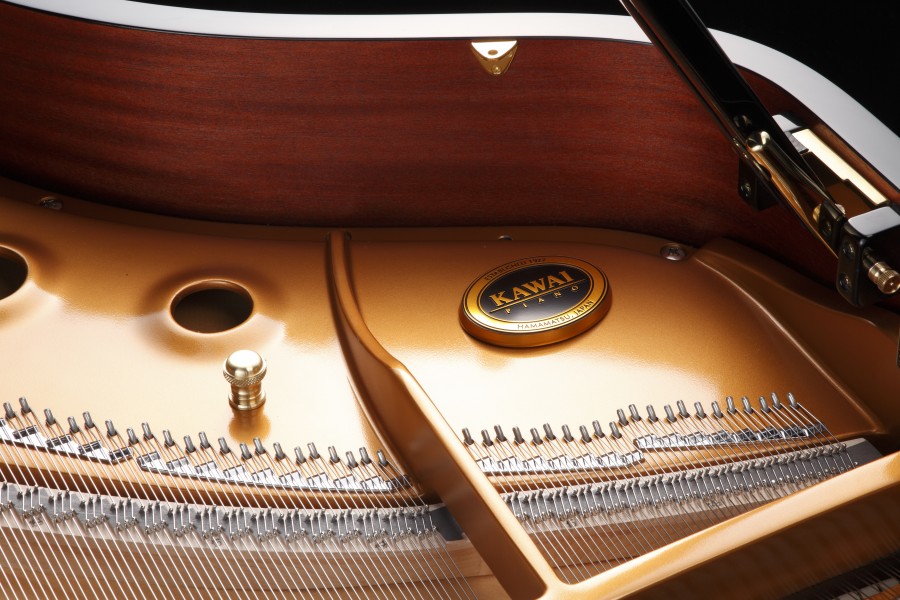

The Soundboard
The soundboard is the very heart of the piano's tone. Its purpose is to transform the vibrations of the piano's strings into a beautiful, resonant tone. Kawai uses only straight-grained, quarter-sawn solid spruce for all grand piano soundboards. Each one is tested with state-of-the-art equipment to measure the speed at which sound energy travels through it. Only those soundboards that exceed our demanding resonance standards are selected for use in Kawai grand pianos.

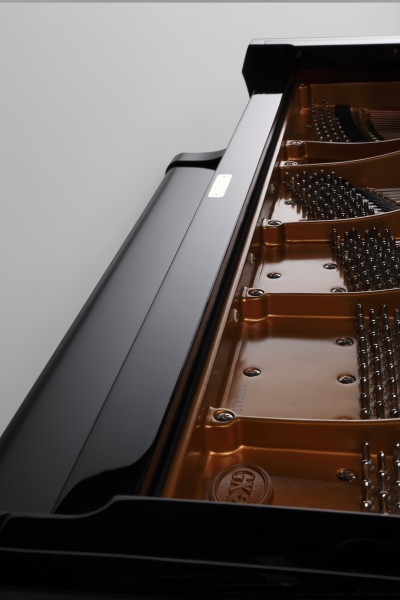

Duplex Scale
The duplex scale enhances harmonics in the treble range adding brilliance and richness to the piano's tone.

Agraffes
Agraffes insure accuracy in string alignment, spacing and angles to produce greater uniformity of tone and consistent "speaking length" for each note.

"Soft Fall" Fallboard
The RX Series fallboard is designed with a dual-damping mechanism so sensitive that it was dubbed "soft fall." The ultra-slow closing system protects hands, fingers and the piano's finish from the harm that a jarring close might cause.

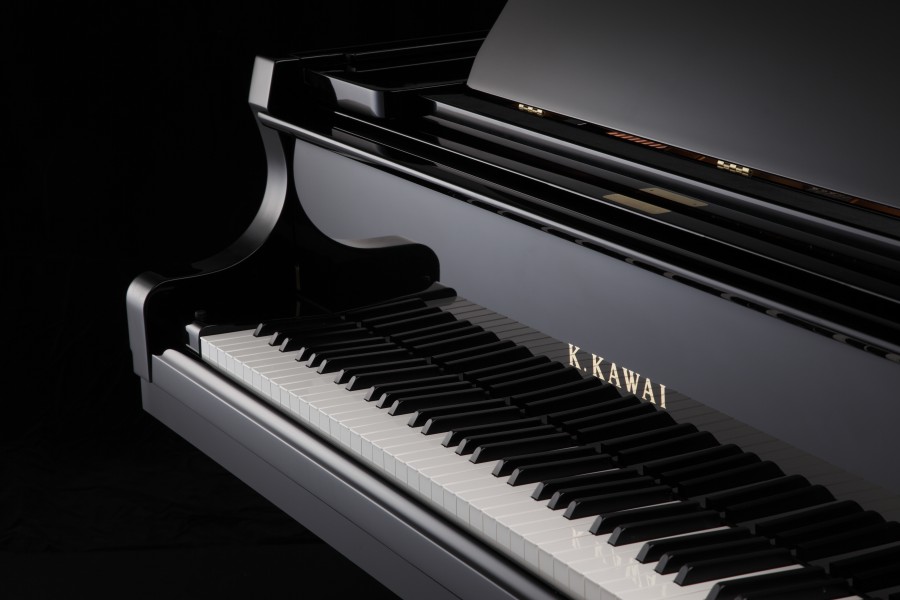

"NEOTEX" Key Surface
KAWAI's exclusive NEOTEX keytop material made of cellulose fibre offers the smooth, understated texture of natural ivory and ebony... and a semi-porous, silica-filled surface to absorb the hand's natural oils and perspiration. Since NEOTEX is used for both the sharps and naturals, the feel of the keys is consistent across the entire keyboard. NEOTEX resists cracking and fading over years of use... and is static-resistant to help prevent the build-up of unwanted dust. The result is a beautiful, long-lasting key surface with exceptional playability.

Also take a look at "RX Guide To Excellence".



FEATURES

Length in cm	200
Width in cm	153
Height in cm	102
Weight in kg	351
Soundboard Material	Spruce
Soundboard Area	1,41 m²
No. of Beams	4
Action	Millennium III
Hammers Material	Mahogany
Hammers Felting	Underfelted
Neotex Key Surfaces	Yes
Duplex Scale	Yes
Agraffes	1st - 54th key
‘Soft Fall’ Fallboard	Yes
Fallboard Lock	Yes
Lid Props	3
Caster Configuration	Single, Brass
Finish	Ebony Polish
