CA 13



The sound of a grand piano

One of the most important characteristics of any piano is its sound. Bright, mellow, dark or warm, a fine piano is detailed and expressive, and inspires the performer to play with their utmost feeling and emotion.
The beautiful sound of Kawai’s hand-built EX grand piano is at the heart of the new CA13, with all eighty-eight keys of this world-class instrument painstakingly recorded, analysed, and reproduced as high-fidelity digital waveforms. Recording each key individually in this way preserves the rich harmonic character of the original EX grand piano, and guarantees that the sound heard when playing any one of the CA13’s keys is a faithful representation of the acoustic source.

Yet when playing a fine piano, the tonal character of each note changes dramatically depending on the amount of pressure applied to the keyboard. Therefore, in order to capture a realistic acoustic portrait of the EX grand piano, not only is each key recorded individually, but also at various different volume levels, ranging from gentle pianissimo to thunderous fortissimo. The new CA13 offers a highly detailed acoustic portrait, employing exclusive Progressive Harmonic Imaging sound technology to ensure smooth tonal transitions across the keyboard and throughout the entire dynamic range.

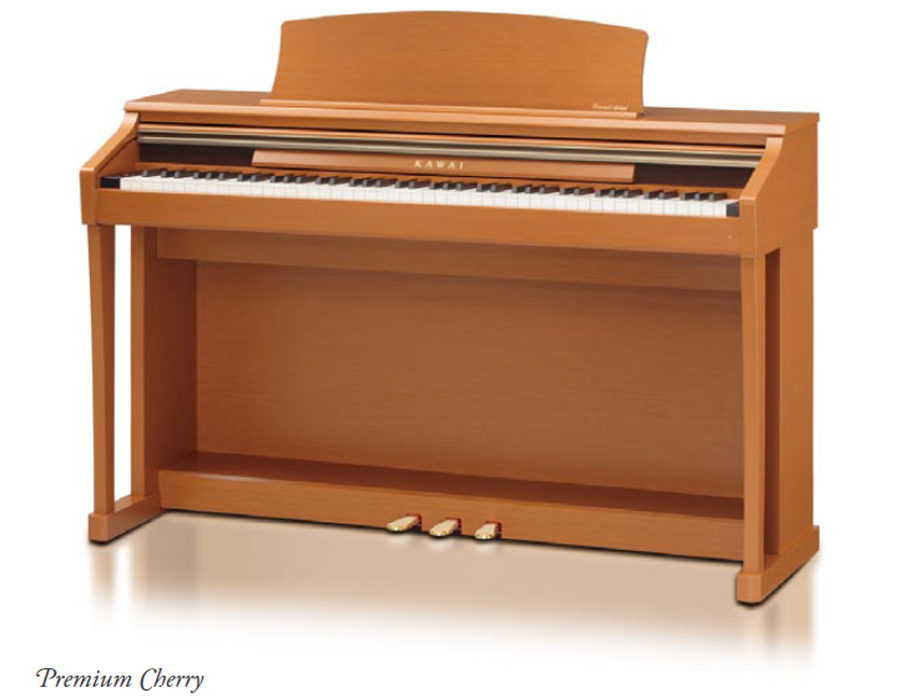

CA13 in Premium Cherry

The touch of a grand piano

The second most important characteristic of a piano is its touch – how the keyboard responds beneath the finger tips, and the sense of connection that one feels with the instrument when playing.

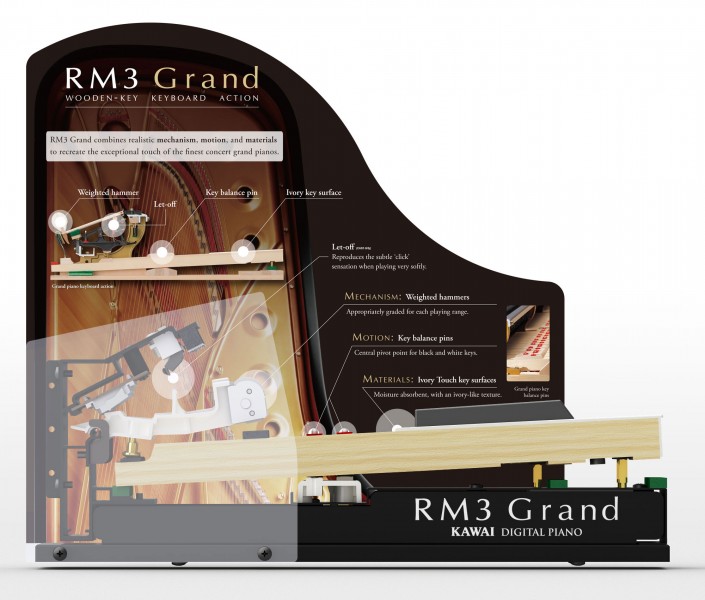

Click on the RM3 graphic to see a larger picture.

Embracing many of the long-established principles associated with an acoustic piano, the CA13’s RM3 Grand keyboard action combines realistic materials, motion, and mechanism to recreate the exceptional touch of the finest concert grand pianos.

Ivory Touch surface

All eighty-eight black and white keys are crafted entirely from long pieces of wood, with finely textured ivory-like surfaces applied to absorb moisture and assist control. Each wooden key pivots smoothly on a central balance pin, replicating the familiar ‘seesaw’ motion of an acoustic piano action. When pressed, the back of each key triggers a grade-weighted hammer to play the note, while additional counter-weights are also placed at the front of the bass keys, helping to lighten their heavier touch during pianissimo passages.With over eighty years of experience in building the world’s finest acoustic pianos clearly influencing our digital piano engineers, the CA13 is guaranteed to deliver a truly remarkable playing experience that will satisfy the demands of even the most discerning pianist.

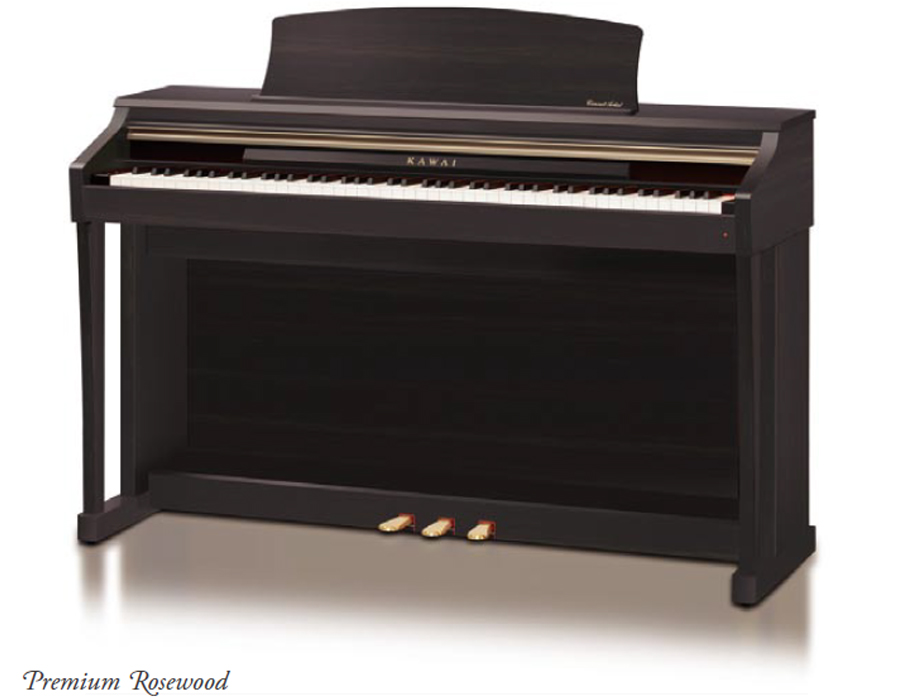

CA13 in Premium Rosewood

High fidelity speaker system

Four speakers combine to deliver deep, rich bass tones and crisp clear treble frequencies for an exceptionally vivid musical experience.

MIDI Connectivity

Control other electronic instruments by playing the CA13’s keyboard, or connect the instrument to a PC or Mac and experiment with sequencing software.

Built-in lessons and exercises

Encourage aspiring pianists to learn piano using classical Czerny and Burgmüller etudes, or a collection of songs from the popular Alfred course books (depending on market area).

You can see a video demo here:

http://www.youtube.com/watch?v=lAlXcgaqrSI





FEATURES

Keyboard	88 wooden keys with Ivory Touch key surfaces
Action	RM3 Grand action
Sound source	Progressive Harmonic Imaging™ (PHI)
Internal sounds	8: Concert Grand, Concert Grand 2, Studio Grand, Modern Piano, Slow Strings, Classic E.Piano, Church Organ, Harpsichord
Polyphony	max. 96 notes
Reverb	Room, Stage, Hall
Effects	Preset
Dual mode	Yes, with adjustable volume balance
Four Hands mode	Yes, with adjustable split point
Lesson function	Alfred or Burgmüller and Czerny lesson songs (depending on market area)
Internal recorder	3 song recorder - approximately 15,000 note memory capacity
Metronome	Beat: 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8; Tempo: 10-300 bpm
Other functions	Touch, Transpose, Tuning, Reverb, Damper Resonance, Brilliance, MIDI Channel, Local Control, Multi-timbral mode, Trans. PGM#
Piano Music	29 or 42 pieces, depending on market area

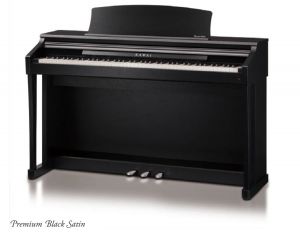

Available finishes	Premium Black Satin, Premium Rosewood or Premium Cherry
Pedals	3 x optical sensor, Sustain (with half-pedal support), Soft, Sostenuto
Key lid	Yes, slidable
Jacks	MIDI (IN/OUT), Headphones x 2, AC adapter PS-154
Speakers	12 cm x 2 (full range speakers) 5 cm x 2 (tweeters)
Output power	2 x 15W
Dimensions in cm	137 x 46 x 89
Weight in kg	59

PDF DOCUMENTS

Owner's manual (PDF)	(2,27 MB)
CA 13 catalogue	(0,66 MB)

AUDIO DEMOS

Concert Grand	(1,76 MB)
Concert Grand 2	(1,99 MB)
Studio Grand	(1,86 MB)
Modern Piano	(1,55 MB)
Classic E.Piano	(1,49 MB)
Church Organ	(1,59 MB)
Harpsichord	(0,68 MB)
Slow Strings	(1,41 MB)
