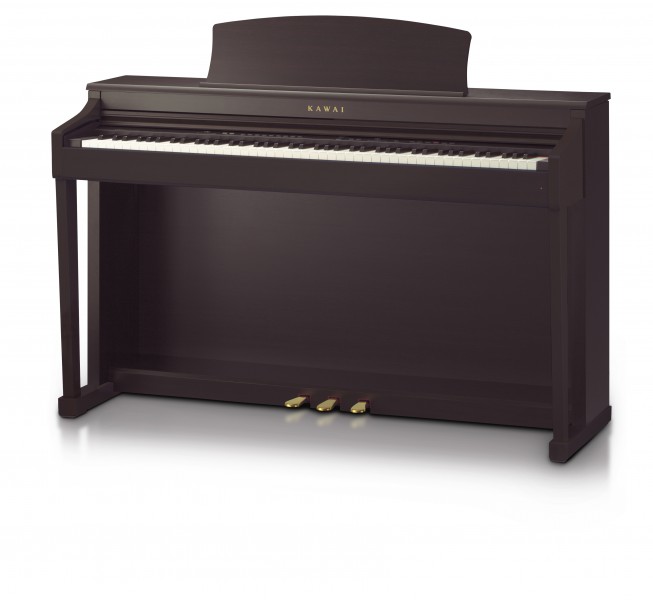

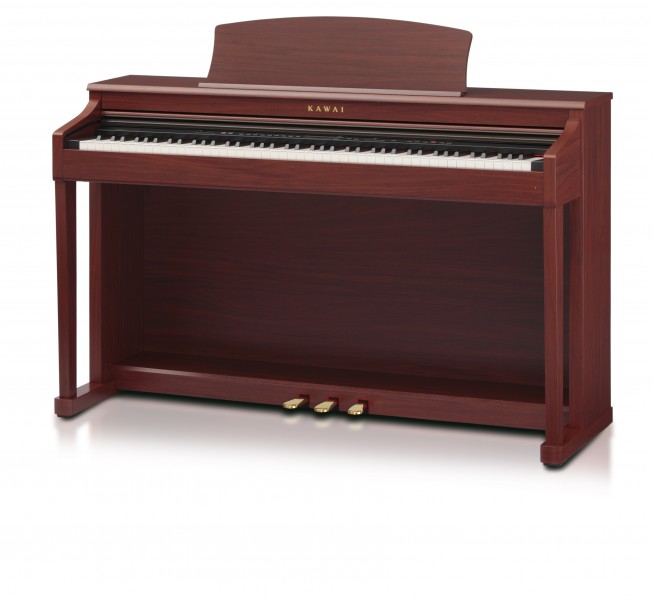

CN 33



The beautiful sound of the EX grand piano is at the heart of the new CN series, with all 88 keys of this world-class instrument  painstakingly recorded, analysed and reproduced as high-fidelity digital waveform. Recording each key individually in this way - as opposed to stretching the same tone over several different notes - ensures that the rich harmonic character of the original EX grand piano is preserved, and guarantees that the sound heard when playing any one of the CN series'keys is a faithful representation of the acoustic source

ACCURATELY REPRODUCED

When playing the piano, the amount of pressure applied to the keyboard affects not only the volume of the sound produced, but also the unique tonal character of each note. Therefore, in order to construct a realistic acoustic portrait of the EX grand piano, not only is each key recorded individually, but also at various different volume levels, ranging from gentle pianissimo to thunderous fortissimo. The new CN series offers a highly detailed acoustic portrait, employing Progressive Harmonic Imaging technology to ensure smooth tonal transitions across the keyboard and throughout the entire dynamic range.

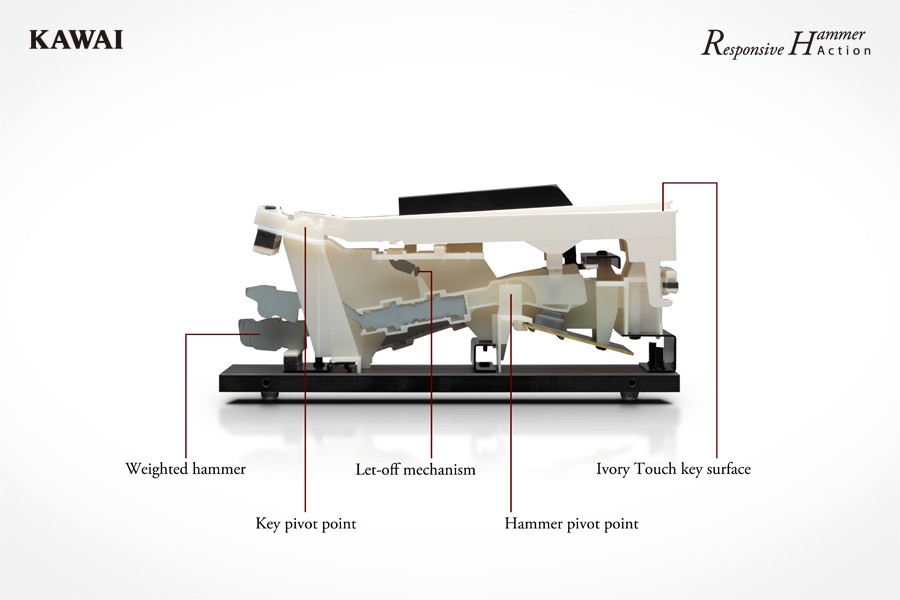

RESPONSIVE HAMMER ACTION

The new Responsive Hammer Action recreated the distinctive touch of an acoustic grand piano, with its realistic movement and rigid, springless design providing a smooth, natural, piano playing experience. The weight of the keyb

oard is appropriatelly graded to miror the heavier bass hammers and lighter treble hammers of an acoustic piano, while structural reinforcements within the action assembly ensure greater stability during fortissimo and staccato passages. The new CN series instruments also feater Kawai's Ivory Touch Key surfaces that gently absorb finger moisture to assist the player's performeance.

Each CN digital piano featers a variety of realistic acoustic piano sounds that are ideally suited to playing a wide range of Classical, Jazz, Pop and Modern musical styles. Reverberation and resonance effects are also applied, helping to further improve both the sounds'tonal authenticity and the player's overall piano playing experience. Complementing their realistic acoustic piano voices, the CN range also feature a strong selection of additional sounds, ranging from electric pianos and drawbar and church organs, to strings, brass, and woodwind instruments, inviting musicians to add greater variety to their performances.

You can see CN 33 demo here:

FEATURES

Action	RH Action with let-off, 88 weighted keys with Ivory Touch key surfaces
Sounds	36
Sound source	Progressive Harmonic Imaging™ system with 88 key sampling
Polyphony	Max. 96 notes
Reverb	5: Room 1, Room 2, Stage, Hall 1, Hall 2
Effects	Chorus, Tremolo, Delay 1, Delay 2, Delay 3, Rotary 1, Rotary 2
Lesson function	Alfred lesson books
Dual mode	Yes
Split mode	Yes, splitpoint is freely assignable
4-Hand mode	Yes
Key Velocity	Light 1, Light 2, Normal, Heavy 1, Heavy 2, off
Recorder	3 songs, 2 tracks, max. 15.000 notes
Other features	Damper Effect, String Resonance, Transpose, MIDI-Multi-Mode, Tuning, Historic Temperaments, Layer Octave Shift, Lower Octave Shift, Lower Pedal On/Off, Damper Hold, Panel Lock
LED-Display	Yes
Metronome	Beats: 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8; Tempo: 10-300 BPM
Demo Songs	30
Concert Magic Songs	88
Pedals	3: Damper (Half-Pedal), Sostenuto, Soft

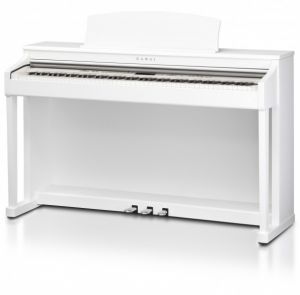

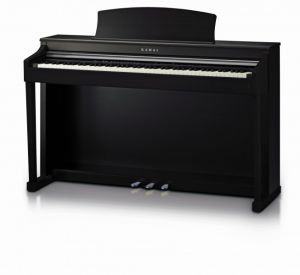

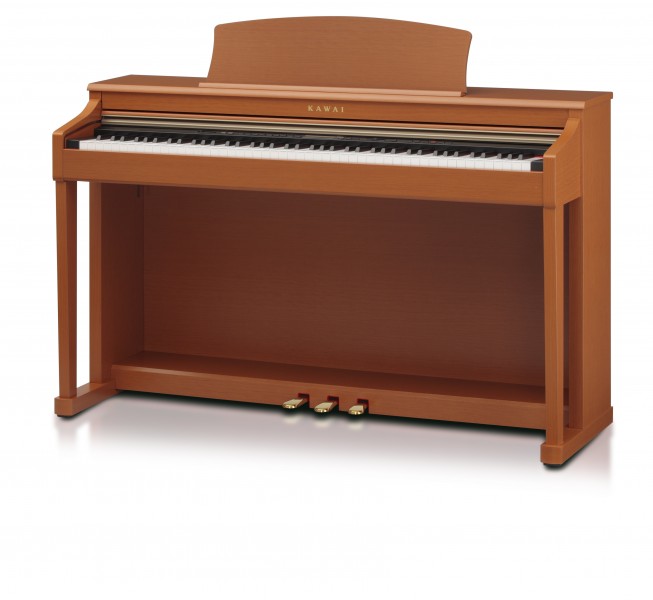

Finish	Premium Rosewood, Premium Mahogany, Premium Cherry, Satin Black or Premium Satin White
Key lid	Yes
Jacks	Headphones x 2, Line In, Line Out, MIDI In/Out, USB (to Host), USB (to Device)
Speakers	16 cm x 2
Amplifier	20 Watt x 2
Dimensions (WxDxH) in cm	138 x 47 x 88
Weight in kg	54

PDF DOCUMENTS

Owner's Manual	(2,84 MB)
Song list	(0,07 MB)
CN series catalogue	(1,78 MB)

AUDIO DEMOS



Concert Grand 1 (1,76 MB)	Diapason (1,12 MB)
Concert Grand 2 (1,98 MB)	Full Ensemble (0,92 MB)
Studio Grand 1 (1,86 MB)	Harpsichord (0,69 MB)
Studio Grand 2 (1,71 MB)	Vibraphone (0,90 MB)
Mellow Grand 1 (2,11 MB)	Clavi (0,72 MB)
Mellow Grand 2 (2,56 MB)	Slow Strings (1,03 MB)
Rock Piano (1,40 MB)	String Pad (1,05 MB)
Modern Piano (1,55 MB)	String Ensemble (0,72 MB)
Classic E. Piano (1,41 MB)	Choir (0,84 MB)
Modern E. Piano 1 (0,71 MB)	Choir 2 (1,36 MB)
Modern E. Piano 2 (1,24 MB)	New Age Pad (1,20 MB)
Jazz Organ (1,14 MB)	Atmosphere (0,88 MB)
Drawbar Organ 1 (1,08 MB)	Wood Bass (0,85 MB)
Drawbar Organ 2 (0,95 MB)	Fretless Bass (0,88 MB)
Church Organ (1,20 MB)	Wood Bass & Ride (0,73 MB)
